Ergotron LX Desk Mount LCD Arm, Tall Pole
Tax Information
Exc GST: 255.45GST: 25.55
Inc GST: 281.00
Estimated Availability:
10 or more units in stock
*Our stock is a mix of Suppllier and HT Stock.
All shipments are subject to our standard delivery policy.
Durable polished aluminum construction! Sleek and streamlined, the LX frees up space and allows positioning of your display for greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides an unparalleled range of motion.
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Description
Ergotron 45-295-026 can mount a monitor onto a desk that is up to 34" in screen size and weighs from 5 to 25 lbs. With the flexibility of this arm, the monitor can be extended 25" horizontally and moved out of the way, when not in use. It can also be adjusted 13" vertically. This arm comes with both clamp mount as well as Grommet mount options. For monitors heavier than 20 lbs, the vertical adjustability will be reduced to 8.5" from 13".
Durable steel and polished aluminum construction. Tested to perform 10 times the expected life-cycle of other competitive brands at roughly half the price. Sleek and streamlined, the LX frees up space and allows positioning of your display for greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of motion.

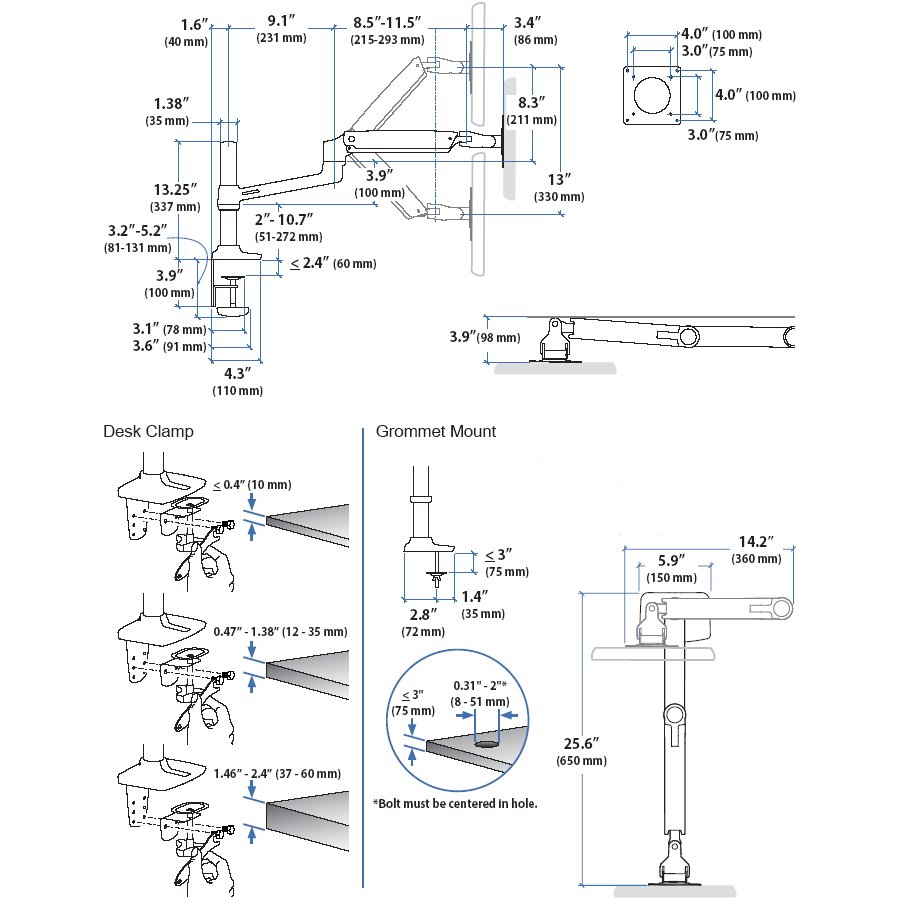

Technical Drawing
Technical Specifications
 |  |  |  |  |  |  |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 34" | 5 - 25 lbs 2.3 - 11.3 kg | 13" 33 cm | 75° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-295-026 |
| Description | LX Desk Mount LCD Monitor Arm, Tall Pole (polished aluminum) |
| Includes |
|
| Pole Length | 13.25" (34 cm) |
| Pole Diameter | Diameter is 1-3/8". Grip is adjustable on the pole. It can be as low as 2" and as high as 13.25". |
| LX Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200) |
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Improved LX Arm Features and Benefits |
|
| Mounting Options | Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31" to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Weight Capacity | 5 to 25 lbs (2.3 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm) |
| Complies | With all international environmental regulations related to its design, manufacture and packaging. Read more about our Environmentally Responsible Process |
| Shipping Dimensions | 23"H x 11.25"W x 7.25"D (59 x 29 x 18 cm) |
| Shipping Weight | 11 lbs (5 kg) |
| Warranty | Ten (10) years |
Benefits
- The LX Desk Mount Arm provides ergonomic comfort
- By adjusting the display according to the user`s needs, this arm reduces shoulder, neck, back, and eye stress.
- The cable management feature clubs the cables under the arm and out of sight and way of the user.
- Includes taller pole for a greater range of vertical positioning. Position your LCD high above your worksurface for added clearance and increased visibility within your workflow
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF motion technology provides premium ease-of-use display adjustment
- Extends LCD up to 25" (64 cm); push your display out of the way when not in use
- 13" (33 cm) height range meets the ergonomic needs of more than nine out of ten adults
- Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space-constrained areas
- Passes Ergotron 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Durable polished aluminum construction! Sleek and streamlined, the LX frees up space and allows positioning of your display for greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides an unparalleled range of motion.
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Description
Ergotron 45-295-026 can mount a monitor onto a desk that is up to 34" in screen size and weighs from 5 to 25 lbs. With the flexibility of this arm, the monitor can be extended 25" horizontally and moved out of the way, when not in use. It can also be adjusted 13" vertically. This arm comes with both clamp mount as well as Grommet mount options. For monitors heavier than 20 lbs, the vertical adjustability will be reduced to 8.5" from 13".
Durable steel and polished aluminum construction. Tested to perform 10 times the expected life-cycle of other competitive brands at roughly half the price. Sleek and streamlined, the LX frees up space and allows positioning of your display for greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of motion.
Technical Drawing
Technical Specifications
| | | | | | |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 34" | 5 - 25 lbs 2.3 - 11.3 kg | 13" 33 cm | 75° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-295-026 |
| Description | LX Desk Mount LCD Monitor Arm, Tall Pole (polished aluminum) |
| Includes |
|
| Pole Length | 13.25" (34 cm) |
| Pole Diameter | Diameter is 1-3/8". Grip is adjustable on the pole. It can be as low as 2" and as high as 13.25". |
| LX Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200) |
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Improved LX Arm Features and Benefits |
|
| Mounting Options | Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31" to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Weight Capacity | 5 to 25 lbs (2.3 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm) |
| Complies | With all international environmental regulations related to its design, manufacture and packaging. Read more about our Environmentally Responsible Process |
| Shipping Dimensions | 23"H x 11.25"W x 7.25"D (59 x 29 x 18 cm) |
| Shipping Weight | 11 lbs (5 kg) |
| Warranty | Ten (10) years |
Benefits
- The LX Desk Mount Arm provides ergonomic comfort
- By adjusting the display according to the user`s needs, this arm reduces shoulder, neck, back, and eye stress.
- The cable management feature clubs the cables under the arm and out of sight and way of the user.
- Includes taller pole for a greater range of vertical positioning. Position your LCD high above your worksurface for added clearance and increased visibility within your workflow
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF motion technology provides premium ease-of-use display adjustment
- Extends LCD up to 25" (64 cm); push your display out of the way when not in use
- 13" (33 cm) height range meets the ergonomic needs of more than nine out of ten adults
- Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space-constrained areas
- Passes Ergotron 10,000-cycle motion test, which ensures years of trouble-free height adjustment
