  2. TP-Link VIGI C540V 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt HD Camera (DX455 / VIGI C540V)

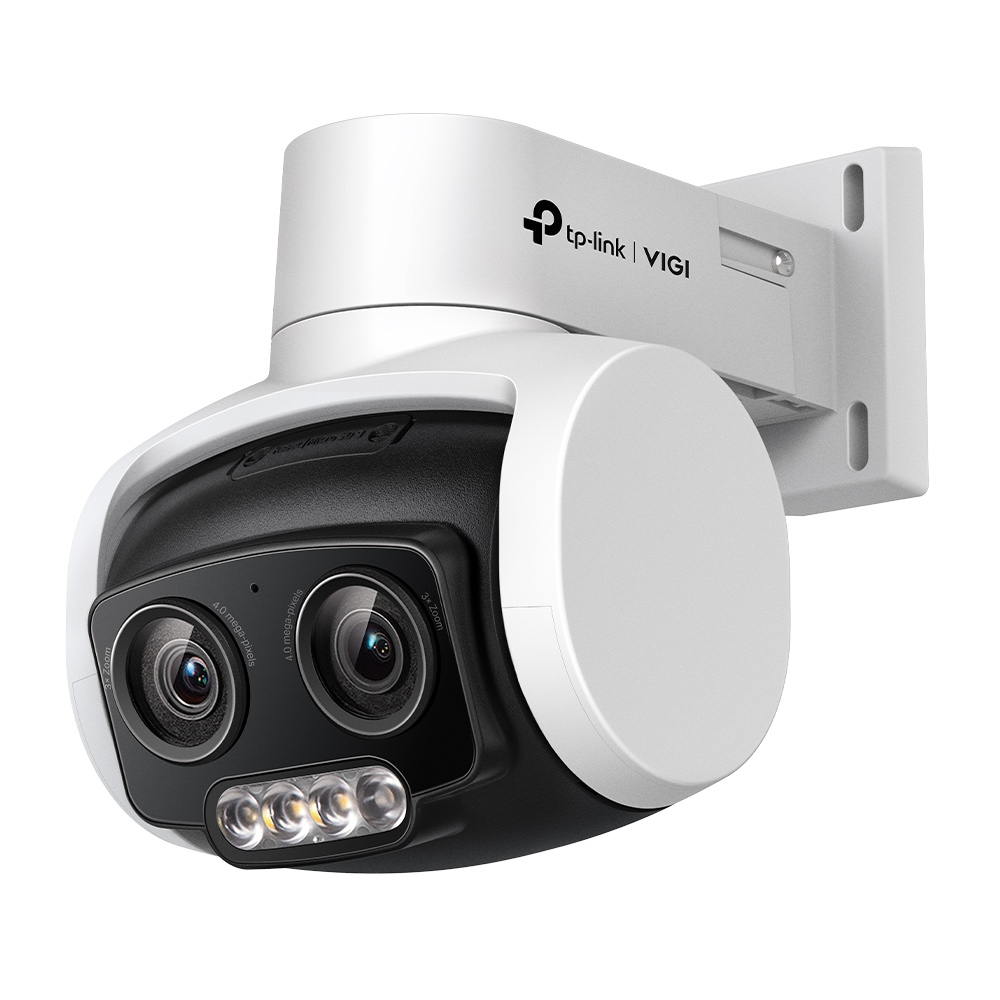

TP-Link VIGI C540V 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt HD Camera

Ref No.: DX455
$ 129.00 129.0 AUD
Add To Cart Buy Now

Tax Information

Exc GST: 117.27
GST: 11.73
Inc GST: 129.00


Estimated Availability:


10 or less units in stock
*Our stock is a mix of Suppllier and HT Stock.

All shipments are subject to our standard delivery policy.

See More With Less

4MP Outdoor Full-Color Dual-Lens

Varifocal Pan Tilt Network Camera


Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.


Powerful Pan Tilt

Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route).


Human & Vehicle Classification

Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.


Automatic Tracking

Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image. Track the path efficiently when there should be little movement in the area.


Smart Detection for Efficient Monitoring

By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.


Active Defense

Warn potential intruders instantly with sound and light when abnormal events are detected.


Two-Way Audio

With voice intercom support, carry two-way conversations while watching your feed from anywhere.


PoE & IP66

Outdoor PoE connection makes your wiring remarkably easy. Reliable IP66 enables stable outdoor performance.


Smart Video Coding by H.265+

Compresses the video size without sacrificing video quality, easing the network load and saving disk space.


Flexible Storage

Local storage is available for each method, as well as onbsoard storage with an SD card slot (up to 256 GB).


Remote Management

Take full control over your security anytime and anywhere on the VIGI app or client.


One system. Full security.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Performance
Type
Characteristics of the device.
IP security camera
Placement supported
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Indoor & Outdoor
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
PTZ control
Certification
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Design
Mounting type
Type of mounting e.g. wall mounting.
Ceiling
Product colour
The colour e.g. red, blue, green, black, white.
White, Black
Housing material
What the casing of the product is made of.
Plastic
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP66
Camera
Camera pan control
Camera tilt control
Lens viewing angle, horizontal
84°
Lens viewing angle, vertical
46°
Lens viewing angle, diagonal
100°
Tilt angle range
0 - 120°
Tilt speed
40 °/sec
Pan range
0 - 332°
Pan speed
55 °/sec
Image sensor
Number of sensors
1
Optical sensor size
Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
25.4 / 3 mm (1 / 3")
Sensor type
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Lens system
Zoom capability
The amount that the camera lens can zoom.
Digital zoom
Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.
3x
Number of lenses
The number of lenses installed in the device.
1
Maximum aperture number
1.6
Focal length range
Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).
4 - 12 mm
Night vision
Night vision
Night vision is technology which allows you to see in low light conditions.
Night vision distance
30 m
LED type
IR
Number of illumination LEDs
1
Infra-red wavelength
850 nm
Video
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2560 x 1440 pixels
Total megapixels
A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
4 MP
Video formats supported
The type of video formats that can be used by this device.
H.264, H.264+, H.265, H.265+
Video
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported video modes
The video modes that can be displayed by the device.
720p, 1080p, 1440p
Video recording
Recording moving visual images.
Frame rate
30 fps
Bit rate control
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate
256 Kbps - 4 Mbps
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type
Fast Ethernet
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Storage
Built-in HDD
The product has a hard drive built into it.
Card reader integrated
The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards
Types of memory cards which can be used with this product.
MicroSD (TransFlash)
Maximum memory card size
The maximum size of memory card that can be used with this device.
256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Power
Power source type
What the power source is.
PoE
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
2.9 W
Power consumption (max)
The maximum amount of power used by the device.
14 W
DC output voltage
12
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
The measurement or extent of something from side to side.
136 mm
Depth
The distance from the front to the back of something.
139 mm
Height
The measurement of the product from head to foot or from base to top.
107 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
430 g
Package weight
Weight of the packaged product.
660 g
Package type
The type of product package e.g. box.
Box
Packaging content
Number of cameras
The quantity of cameras that product can support.
1
