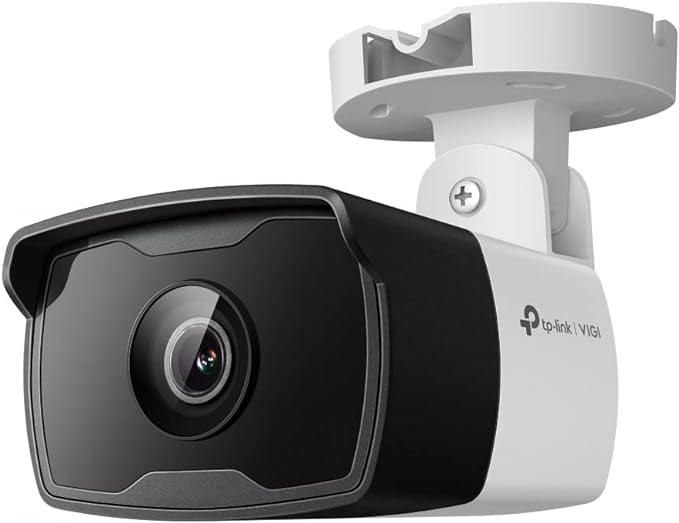

TP-Link VIGI C340I 4MP Outdoor IR Bullet Network HD Camera P
Tax Information
Exc GST: 53.65GST: 5.35
Inc GST: 59.00
Estimated Availability:
10 or less units in stock
*Our stock is a mix of Suppllier and HT Stock.
All shipments are subject to our standard delivery policy.

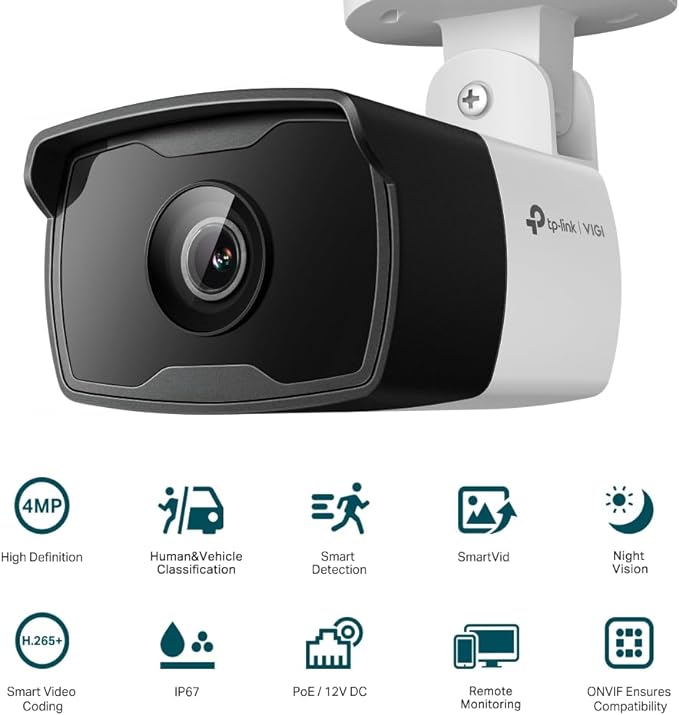

TP-Link VIGI 4MP 4mm Lens Outdoor IR Bullet Network Camera comes with 4MP — more than enough pixels to pick up some of the more discrete details. Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects. VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision. Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. Reliable IP67 for stable outdoor performance. Two types of power supply not only give you more convenience but also make your wiring remarkably easy. Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
|
SPECIFICATIONS:
CAMERA | |
Image Sensor | 1/3” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | Color: 0.1 Lux; 0 Lux with IR |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Day/Night/Auto/Schedule-Switch |
Lens | 4 mm |
Aperture | 4 mm: F2.2 |
Lens Mount | M12 |
Viewing Angle | 4mm: 75.1°/41.5°/88.7°(H/V/D) |
IR Working Distance | 30m |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
Weatherproof Rating | IP67 |
LENS | |
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Aperture | 4 mm: F2.0 |
FOV | 4 mm: Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7° |
Lens Mount | M12 |
DORI Distance | 4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
VIDEO | |
Max. Resolution | 2560 × 1440 |
Main Stream | Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Sub-Stream | Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control | CBR, VBR |

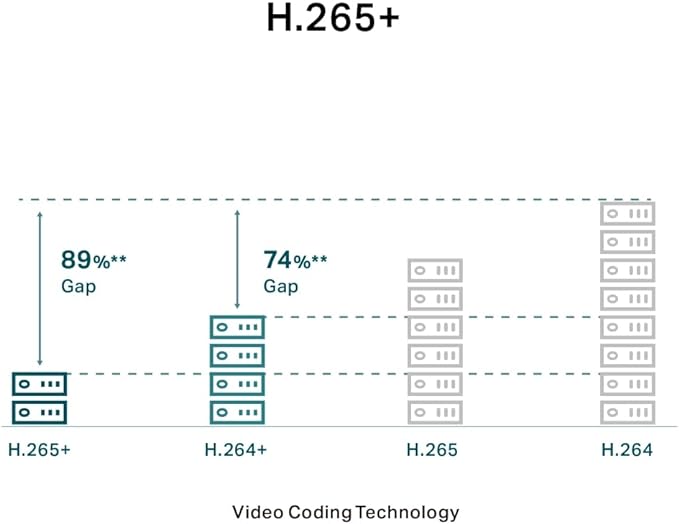

Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
ILLUMINATOR | |
IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
White LED | N/A |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
ANGLE ADJUSTMENT (MANUAL) | |
Range | Pan: -90° to 90° Tilt: -90° to 90° |
IMAGE | |
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | DWDR |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
AUDIO | |
Audio Communication | N/A |
Audio Input | N/A |
Audio Output | N/A |
Audio Compression | N/A |
Audio Sampling Rate | N/A |
Environment Noise Filtering | N/A |
Audio Bit Rate | N/A |
NETWORK | |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Network Storage | NAS (NFS, SMB/ CIFS) |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Cloud | Yes |
ONVIF | Yes |
INTERFACES | |
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
Alarm | N/A |
Reset Button | N/A |
Power | DC Power Port |
Button | - |
Video Output | - |
On-board Storage | N/A |
Built-in Microphone | N/A |
Built-in Speaker | N/A |
Audio | N/A |
ALARM AND EVENT MANAGEMENT | |
Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
Alarm Linkage | Message Push |
Linkage Method | N/A |
Output Notification | Message Push |
GENERAL | |
Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Operating Temperature | -30–60 °C |
Storage Temperature | -40–60 °C |
Storage Humidity | 95% or Less (Non-Condensing) |
Operating Humidity | 95% or Less (Non-Condensing) |
Dimensions( H X W X D ) | 174 × 74 × 71 mm |
Material | Plastic |
General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
Net Weight | 0.2 Kg |
Gross Weight | 0.35 Kg |
Power Consumption | 12V DC: Max 5W PoE: Class 0 |
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
Protection | IP67 |
Product Dimensions (L x W x H) | 73× 174 × 71 mm |
Certifications | CE/BSMI/VCCI/ONVIF |
VIDEO/IMAGE | |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
Frame Rate & Resolutions | Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240 |
Max. Resolution | 4MP (2560 × 1440) |
Video Streaming | Main Stream Sub-Stream |
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Video Bit Rate | 64 Kbps to 4 Mbps |
Day/Night Switch | Day/Night/Auto/Schedule |
SMART FEATURE-SET | |
Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
Linkage Method | Trigger Notification: ONVIF, HTTPS |
Region of Interest | 1 Region |
