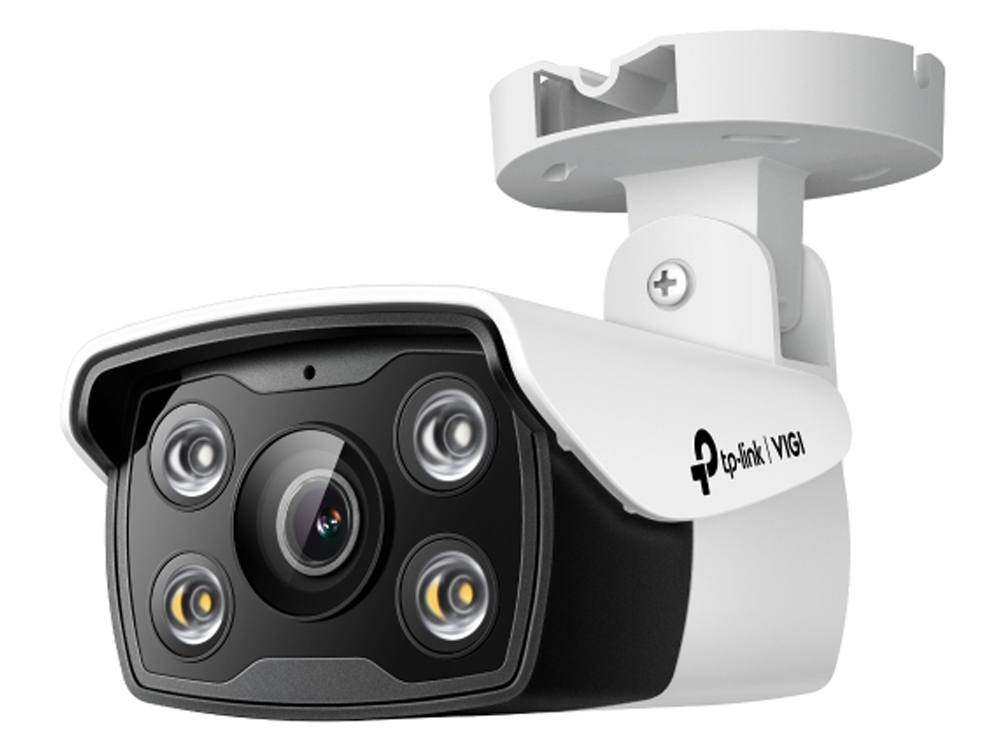

TP-Link VIGI C340 4MP Outdoor Full-Color Bullet Network HD Camera
$ 74.00
Tax Information
Exc GST: 67.27GST: 6.73
Inc GST: 74.00
Estimated Availability:
10 or less units in stock
*Our stock is a mix of Suppllier and HT Stock.
All shipments are subject to our standard delivery policy.
| 4MP High Definition |
| · 24h Full-Colour: Obtain 24-hour colour details, via a high-sensitivity sensor and included spotlight LEDs |
| · Waterproof: Reliable IP66 for stable outdoor performance |
| · Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering) |
| · H.265+: Cameras transmit compressed crystal-clear video to save disk space |
Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, and then the power supply and data transmission are all settled. Waterproof hardware protects stable performance in outdoor scenarios. Monitor 24-hour clear and colourful details even on pitch night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Specifications
Manufacturer Specifications
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Lens | Fixed focal lens (2.8 mm / 4 mm / 6 mm) |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Weatherproof Rating | IP66 |
| IR Working Distance | 30m |
| Shutter Speed | 1/3 to 1/10000 s |
| Aperture | 4 mm: F1.6 |
| Lens Mount | M12 |
| Illumination Distance | 30 m |
| Viewing Angle | (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| Slow Shutter | Yes |
| Minimum Illumination | 0 lux with IR/white Light |
| Day/Night Mechanism | IR Cut Filter |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager |
| Web Browser | Google Chrome® 57 and above |
| Firefox® 52 and above | |
| Safari® 11 and above | |
| Microsoft® Edge 91 and above | |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Network Storage | NAS (NFS, SMB/ CIFS) |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Weight | 195g |
| Package Contents | VIGI Network Camera |
| Quick Start Guide | |
| Waterproof Cable Attachments | |
| Mounting Accessories | |
| Dimensions( H X W X D ) | 78 × 70 × 174 mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.42 Kg |
| Power Consumption | 12V DC: Max 7.5W |
| PoE: Class 0 | |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| PoE (802.3af/at, class 0) | |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 78× 174 × 70 mm |
| Certifications | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| Button | Reset Button |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, People Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| VIDEO/IMAGE | |
| Video Compression | Main stream: H.265+/H.265/H.264+//H.264 |
| Sub-Stream: H.265/H.264 | |
| Frame Rate & Resolutions | Main Stream |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 | |
| Sub-Stream | |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 640x480, 352x288, 320x240 | |
| Video Streaming | Main Stream |
| Sub-Stream | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps |
| Sub-Stream: 64 Kbps to 512 Kbps | |
| SMART FEATURE-SET | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, Human Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception ( illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| ILLUMINATOR | |
| IR LED | Quantity: 2 |
| Range: 30m | |
| Wavelength: 850nm | |
| White LED | Quantity: 2 |
| Range: 30m | |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm/4 mm/6 mm |
| Aperture | 4 mm: F1.6 |
| FOV | 4mm: |
| Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° | |
| Lens Mount | M12 |
| DORI Distance | 4 mm |
| Detect: 80 m (262 ft) | |
| Observe: 33 m (109 ft) | |
| Recognize: 16 m (52 ft) | |
| Identify: 8 m (26 ft) | |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: -90° to 90°, |
| Tilt: -90° to 90° | |
| VIDEO | |
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate： |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Sub-Stream | Frame Rate： |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 640x480, 352x288, 320x240 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps |
| Sub-Stream: 64 Kbps to 512 Kbps | |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
