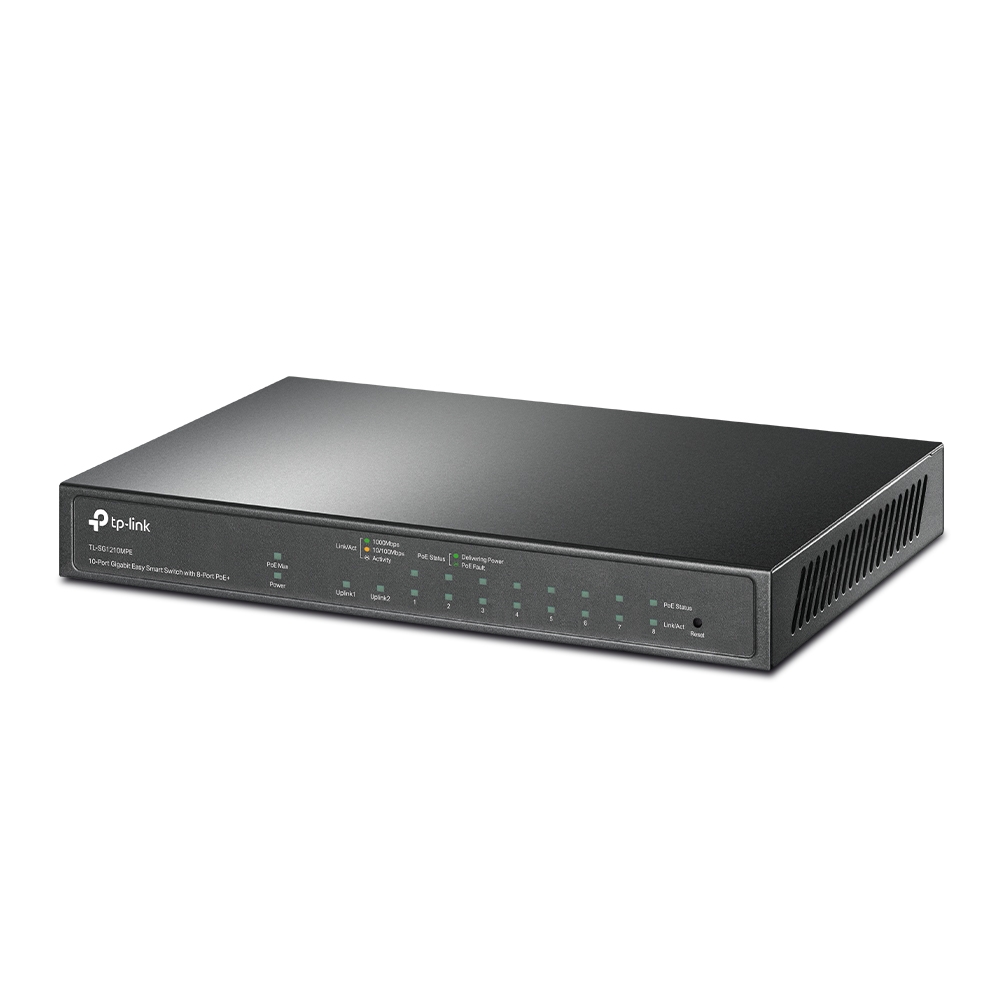

TP-Link TL-SG1210MPE 10-Port Gigabit Easy Switch w/ 8Pt Poe+
Tax Information
Exc GST: 162.73GST: 16.27
Discount: 27.00
Inc GST: 152.00
Estimated Availability:
10 or more units in stock
*Our stock is a mix of Suppllier and HT Stock.
All shipments are subject to our standard delivery policy.
The TL-SG1210MPE 10-Port Gigabit PoE+ Compliant Managed Network Switch from TP-Link is compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV. Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123W PoE power budget for the eight Gigabit PoE+ ports means it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Interfaces
| Inputs/Outputs | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 1 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) |
Protocols
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | Auto-MDIX/MDI IGMP Snooping Link Aggregation Port Mirroring |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 16,000 Bytes |
| MAC Address Table Size | 4K |
| VLAN Groups | 32 |
| VLAN IDs | 4000 |
Security
| Security Features | Storm Control |
Standards
| Supported IEEE Standards | 802.3ab, 802.3af, 802.3at, 802.3i, 802.3p, 802.3q, 802.3u, 802.3x, 802.3z |
Performance
| Forwarding Rate | 14.88 Mpps |
| Switching Bandwidth | 20 Gb/s |
Electrical
| Power Draw | 141.54 W (Max) |
| DC Input Power | 53.5 VDC at 2.4 A |
| PoE Power Budget | 123 W |
| PoE per Port | 30 W |
| Power Supply Type | External |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 95% |
General
| Cooling System | Passive |
| Material of Construction | Metal |
| Dimensions | 8.2 x 5 x 1" / 209 x 126 x 26 mm |
Packaging Info
| Package Weight | 3.45 lb |
| Box Dimensions (LxWxH) | 12.4 x 9.7 x 2.8" |
