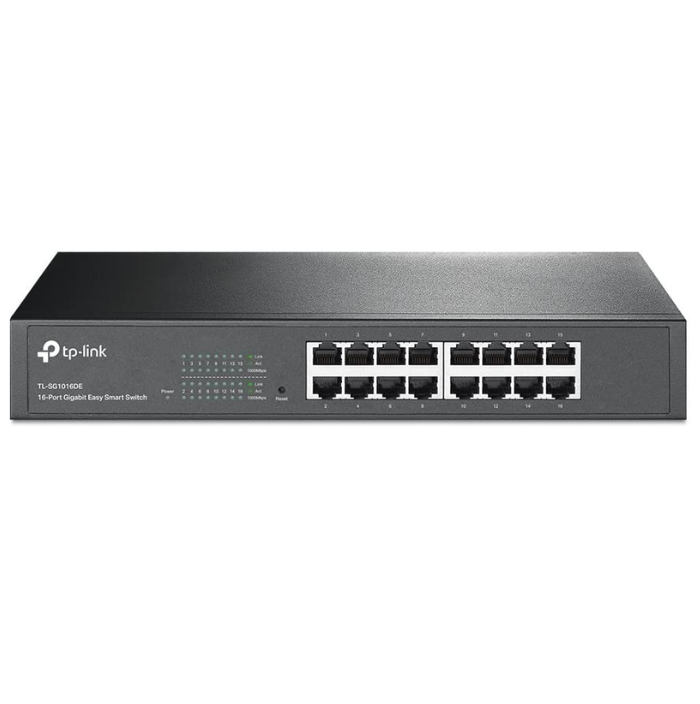

TP-Link TL-SG1016DE 16 Port Gigabit Easy Smart Switch
Tax Information
Exc GST: 99.09GST: 9.91
Discount: 11.00
Inc GST: 98.00
Estimated Availability:
10 or more units in stock
*Our stock is a mix of Suppllier and HT Stock.
All shipments are subject to our standard delivery policy.
Overview
The TP-Link TL-SG1016DE is a 16-port Gigabit Easy Smart Switch designed for small and medium-sized business networks that require simple network management. It offers essential features such as network monitoring, traffic prioritization, and VLAN support, making it an ideal upgrade from unmanaged switches.
Key Features
-
16 Gigabit Ports: Provides 16 × 10/100/1000 Mbps RJ45 ports for high-speed wired connections.
-
Network Monitoring: Supports Port Mirroring, Loop Prevention, and Cable Diagnostics to help administrators monitor traffic and identify connection issues.
-
Traffic Prioritization: Implements Quality of Service (QoS) with Port Priority/802.1p and DSCP to ensure smooth performance for latency-sensitive applications.
-
VLAN Support: Offers port-based, tag-based, and MTU VLANs to enhance network security and segmentation.
-
Energy-Efficient Technology: Incorporates green technology to reduce power consumption without compromising performance.
-
Easy Management: Features a web-based user interface and management utility for simplified configuration.
Specifications
| Specification | Details |
|---|---|
| Model | TL-SG1016DE |
| Ports | 16 × 10/100/1000 Mbps RJ45 |
| Switching Capacity | 32 Gbps |
| MAC Address Table | 8K entries |
| Jumbo Frame | 10 KB |
| QoS | Port-based/802.1p/DSCP |
| VLAN Support | Port-based, Tag-based, MTU VLAN |
| Energy Efficiency | Yes (Green Technology) |
| Dimensions (W×D×H) | 294 × 180 × 44 mm |
| Mounting Options | Desktop or Rackmount |
| Management Interface | Web-based GUI, Easy Smart Configuration Utility |
| Operating Temperature | 0–40°C |
| Certifications | FCC, CE, RoHS |
